H3C IPSec配置实例

发布时间：2019-09-07 08:10:53编辑：auto阅读（2372）














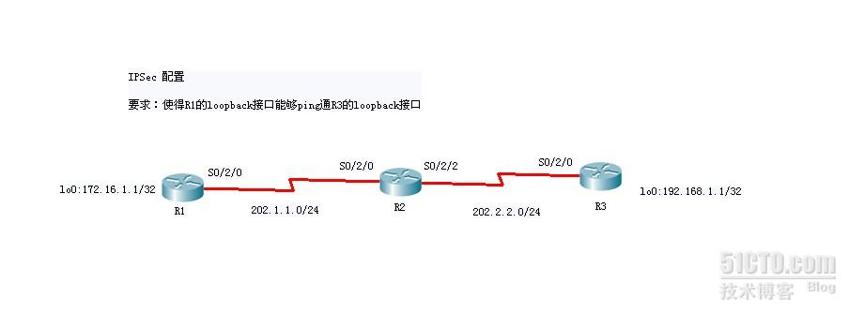

配置步骤：

一、.使得R1与R3之间（公网之间）能够通信

[R1]ip route-static 0.0.0.0 0.0.0.0 12.1.1.2

[R3]ip route-static 0.0.0.0 0.0.0.0 23.1.1.2



二、IPSEC配置

R1配置：

1.配置感兴趣的数据流

[R1]acl  num 3000

[R1-acl-adv-3000]rule  permit  ip source  192.168.1.1 0.0.0.0 destination 192.168.2.1 0.0.0.0



2.IKE策略配置

[R1]ike proposal  10                             //创建IKE提议，并进入IKE视图

[R1-ike-proposal-10]encryption-algorithm 3des-cbc     //IKE提议使用的加密算法

[R1-ike-proposal-10]authentication-method  pre-share  //IKE提议使用的密钥处理方式

[R1-ike-proposal-10]authentication-algorithm  md5    //IKE提议使用的验证算法

[R1-ike-proposal-10]dh group2                     //IKE提议使用的DH交换组

[R1-ike-proposal-10]sa duration 86400               //ISAKMP SA生存周期

[R1-ike-proposal-10]



3.配置IKE对等体及密钥

[R1]ike peer  R3                         //创建IKE对等体，并进入IKE对等体视图

[R1-ike-peer-r3]exchange-mode main         //IKE对等体的协商模式

[R1-ike-peer-r3]pre-shared-key h3c           //IKE对等体的密钥

[R1-ike-peer-r3]local-address 12.1.1.1         //本端安全网关地址

[R1-ike-peer-r3]remote-address 23.1.1.3       //对端安全网关地址

[R1-ike-peer-r3]remote-name R3             //对端安全网关名称

[R1]ike local-name  R1                   //本端安全网关名称

[R1]





4. IPSEC安全提议配置

[R1]ipsec  proposal r1                                //创建IPSEC安全提议

 [R1-ipsec-proposal-r1]transform  esp                   //安全协议

[R1-ipsec-proposal-r1]esp encryption-algorithm  3des       //ESP协议采用加密算法

[R1-ipsec-proposal-r1]esp authentication-algorithm  md5    //ESP协议采用验证算法

[R1-ipsec-proposal-r1]encapsulation-mode tunnel           //ESP协议采用工作模式

[R1-ipsec-proposal-r1]



5.配置IKE协商的安全策略

[R1]ipsec  policy 1 10 isakmp                           //创建一条安全策略

[R1-ipsec-policy-isakmp-1-10]security acl 3000             //配置安全c策略所引用的ACL

[R1-ipsec-policy-isakmp-1-10]proposal  r1                //配安全策略所引用的安全提议

[R1-ipsec-policy-isakmp-1-10]ike-peer r3                  //引用的IKE对等体

[R1-ipsec-policy-isakmp-1-10]pfs dh-group5                //DH组

[R1-ipsec-policy-isakmp-1-10]sa duration time-based  86400  //ipsec SA生存周期

[R1-ipsec-policy-isakmp-1-10]q



6.在接口上应用安全策略

[R1]int s0/2/0

[R1-Serial0/2/0]ipsec  policy 1   //在接口上应用安全策略

[R1]







R3的配置

[R3]ip route-static 0.0.0.0 0.0.0.0 23.1.1.2

[R3]acl number  3000

[R3-acl-adv-3000]rule pe

[R3-acl-adv-3000]rule permit  ip source 192.168.2.1 0.0.0.0 destination  192.168.1.1 0.0.0.0

[R3-acl-adv-3000]q



[R3]ike proposal  10

[R3-ike-proposal-10]encryption-algorithm  3des-cbc

[R3-ike-proposal-10]authentication-method pre-share

[R3-ike-proposal-10]authentication-algorithm md5

[R3-ike-proposal-10]dh group2

[R3-ike-proposal-10]sa duration 86400

[R3-ike-proposal-10]q



[R3]ike peer R1

[R3-ike-peer-r1]exchange-mode main

[R3-ike-peer-r1]pre-shared-key  h3c

[R3-ike-peer-r1]local-a 23.1.1.3

[R3-ike-peer-r1]remote-address 12.1.1.1

[R3-ike-peer-r1]remote-name R1

[R3-ike-peer-r1]Q



[R3]ipsec proposal r3

[R3-ipsec-proposal-r3]transform esp

[R3-ipsec-proposal-r3]esp encryption-algorithm  3des

[R3-ipsec-proposal-r3]esp authentication-algorithm md5

[R3-ipsec-proposal-r3]encapsulation-mode tunnel

[R3-ipsec-proposal-r3]q



[R3]ipsec  policy 1 10 isakmp

[R3-ipsec-policy-isakmp-1-10]security  acl 3000

[R3-ipsec-policy-isakmp-1-10]proposal  r3

[R3-ipsec-policy-isakmp-1-10]ike-peer R1

[R3-ipsec-policy-isakmp-1-10]sa duration  time-based  86400

[R3-ipsec-policy-isakmp-1-10]q



[R3]int s0/2/0

[R3-Serial0/2/0]ipsec  policy  1

[R3-Serial0/2/0]q



三、测试实验结果

 [R1]ping -a 192.168.1.1 192.168.2.1

  PING 192.168.2.1: 56  data bytes, press CTRL_C to break

    Reply from 192.168.2.1: bytes=56 Sequence=1 ttl=255 time=5 ms

    Reply from 192.168.2.1: bytes=56 Sequence=2 ttl=255 time=20 ms

    Request time out

    Reply from 192.168.2.1: bytes=56 Sequence=4 ttl=255 time=26 ms

    Request time out



  --- 192.168.2.1 ping statistics ---

    5 packet(s) transmitted

    3 packet(s) received

    40.00% packet loss

    round-trip min/avg/max = 5/17/26 ms

 [R1]

此时两个内网之间能够正常通信。实验完成









调试命令：

1.显示IKE对等体配置参数

[R1]dis ike peer



---------------------------

 IKE Peer: r3

   exchange mode: main on phase 1

   pre-shared-key cipher nw1kqzgZJnA=

   peer id type: ip

   peer ip address: 23.1.1.3

   local ip address: 12.1.1.1

   peer name: R3

   nat traversal: disable

   dpd:

---------------------------



[R1]



2.显示当前ISAKMP SA的信息

[R1]dis ike sa

    total phase-1 SAs:  1

    connection-id  peer            flag        phase   doi

  ----------------------------------------------------------

        3          23.1.1.3        RD|ST         2     IPSEC

        2          23.1.1.3        RD|ST         1     IPSEC



  flag meaning

  RD--READY ST--STAYALIVE RL--REPLACED FD--FADING TO--TIMEOUT

[R1]







3.显示每个IKE提议的配置参数

[R1]dis ike sa

    total phase-1 SAs:  1

    connection-id  peer            flag        phase   doi

  ----------------------------------------------------------

        3          23.1.1.3        RD|ST         2     IPSEC

        2          23.1.1.3        RD|ST         1     IPSEC



  flag meaning

  RD--READY ST--STAYALIVE RL--REPLACED FD--FADING TO--TIMEOUT

[R1]dis ike pro

[R1]dis ike proposal

 priority authentication authentication encryption Diffie-Hellman duration

              method       algorithm    algorithm     group       (seconds)

---------------------------------------------------------------------------

  10       PRE_SHARED     MD5         3DES_CBC        MODP_1024      86400

  default  PRE_SHARED     SHA         DES_CBC         MODP_768       86400

[R1]



4.显示IPsec安全策略信息

[R1]dis ipsec  policy



===========================================

IPsec Policy Group: "1"

Using interface: {Serial0/2/0}

===========================================



  -----------------------------

  IPsec policy name: "1"

  sequence number: 10

  mode: isakmp

  -----------------------------

    security data flow : 3000

    selector mode: standard

    ike-peer name:  r3

    perfect forward secrecy: DH group 5

    proposal name:  r1

    IPsec sa local duration(time based): 86400 seconds

    IPsec sa local duration(traffic based): 1843200 kilobytes

[R1]





5.显示IPSEC安全提议信息

[R1]dis ipsec  proposal



  IPsec proposal name: r1

    encapsulation mode: tunnel

    transform: esp-new

    ESP protocol: authentication md5-hmac-96, encryption 3des

[R1]









6.显示IPSEC SA的信息

[R1]dis ipsec  sa

===============================

Interface: Serial0/2/0

    path MTU: 1500

===============================



  -----------------------------

  IPsec policy name: "1"

  sequence number: 10

  mode: isakmp

  -----------------------------

    connection id: 3

    encapsulation mode: tunnel

    perfect forward secrecy: DH group 5

    tunnel:

        local  address: 12.1.1.1

        remote address: 23.1.1.3

    Flow :

        sour addr: 192.168.1.1/255.255.255.255  port: 0  protocol: IP

        dest addr: 192.168.2.1/255.255.255.255  port: 0  protocol: IP



    [inbound ESP SAs]

      spi: 2476921505 (0x93a2d2a1)

      proposal: ESP-ENCRYPT-3DES ESP-AUTH-MD5

      sa remaining key duration (bytes/sec): 1887435624/84789

      max received sequence-number: 14

      udp encapsulation used for nat traversal: N



    [outbound ESP SAs]

      spi: 1974141924 (0x75ab03e4)

      proposal: ESP-ENCRYPT-3DES ESP-AUTH-MD5

      sa remaining key duration (bytes/sec): 1887435624/84789

      max sent sequence-number: 15

      udp encapsulation used for nat traversal: N

[R1]



7.显示IPSEC处理的报文信息

[R1]dis ipsec  statistics

  the security packet statistics:

    input/output security packets: 14/14

    input/output security bytes: 1176/1176

    input/output dropped security packets: 0/1

    dropped security packet detail:

      not enough memory: 0

      can't find SA: 1

      queue is full: 0

      authentication has failed: 0

      wrong length: 0

      replay packet: 0

      packet too long: 0

      wrong SA: 0

[R1]
